01-200W |
1 Technical data :
|
Rated Output :200w Max Output: 280W Generator: Permanent magnet generator
Rated output voltage: 24V/12V
Startup wind speed: 2.5m/s (5.6 mph)
Cut-in wind speed: 3m/s(6.7 mph)
Rated wind speed: 6m/s (13.4 mph)
Number of blade: 3Material
of blade: Glass fiber reinforced plastic Blade
Diameter: 2.1m Speed
protection: Automatic Leaned Rated
Rotating Speed: 450r/min Wind
Energy Transforming Rate: 0.40Cp Pole
Diameter: 60*2.5 steel tube Tower
height : 4.5m Work
temperature: -40degrees~~+60degrees
Allocated battery:12V100AH , 2 pcs
Controller: inverter , controller , charger |

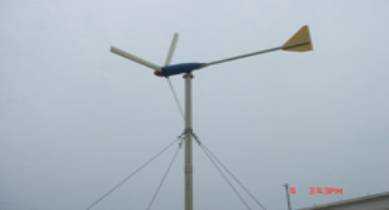

2 . Picture of model 200w
